Description
SCM MiniMax AD 21 - Line Boring Machine
Contact: Stan, the Woodworking Machinery Man
Phone: 678-642-9722
Email: stan@WoodworkingMachineryMan.com

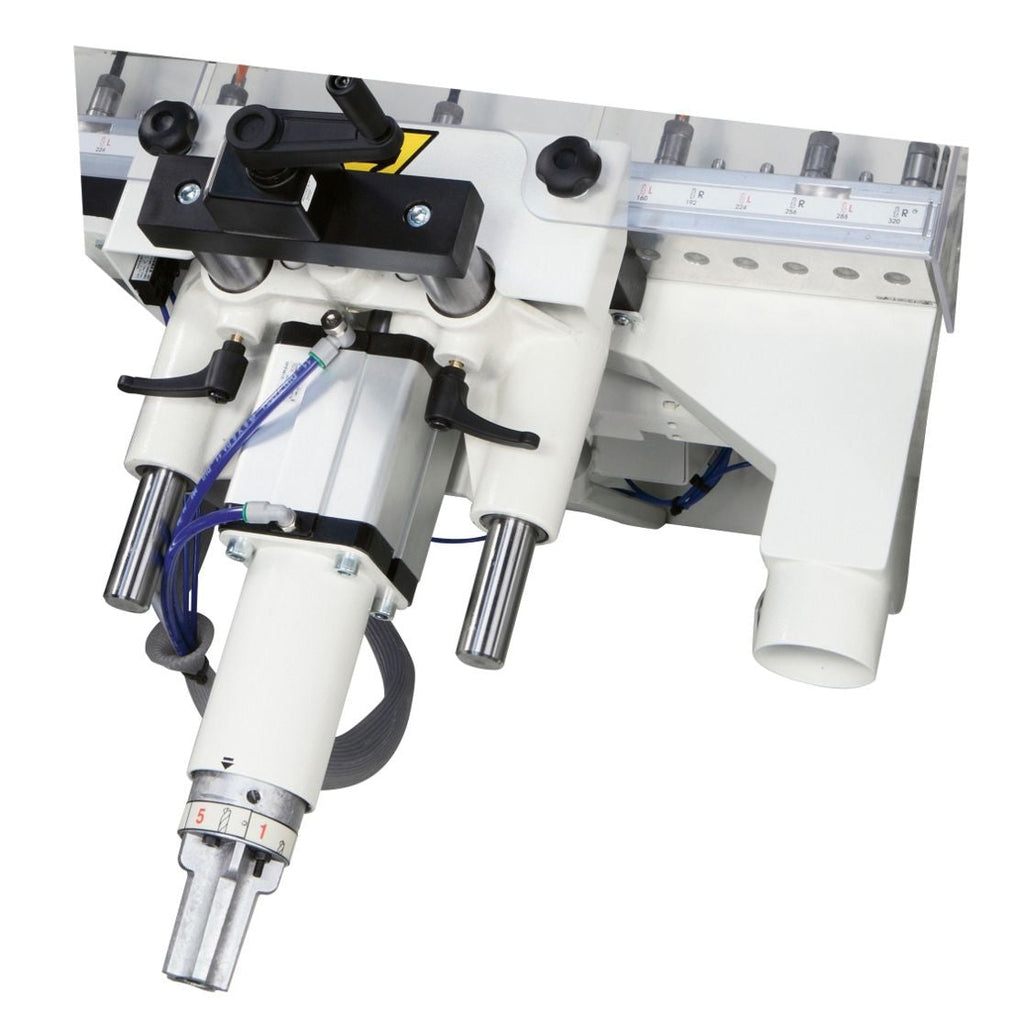

The Advance 21, from SCM Group is a 21-spindle boring machine with a Morbidelli head capable of both line and construction boring.
With the capability to bore both vertically or horizontally, with a positive stop at 45°, the Advance 21 features quick change chucks, designed around the 32mm system of cabinet making.
The latest in a long line of boring machines manufactured by SCM GROUP, , the Advance 21 is equipped with the following standard features . . .
- long fence
- calibration tools
- two pneumatic clamps.
Features:
- Drilling head flips for both line and construction boring
- 1.8hp (available in both singe and three-phase)
- 21 spindles, 32mm system
- Quick-change chucks standard
- 25.2" maximum panel width (optional long fence available)
- 2.4" maximum boring depth
- Pneumatic foot pedal activates both clamping and drilling
- 90 psi of compressed air required
- Net weight: 616 lbs.
Specifications:
- 1.8hp (available in both singe and three-phase)
- 21 spindles, 32mm system
- 25.2" maximum panel width (optional long fence available)
- 2.4" maximum boring depth
- 90 psi of compressed air required
- Net weight: 616 lbs.
