24" Heavy Duty Single-Sided Planer w/Spiral Cutterhead - 10 HP - 3 Ph
Cantek P-630HV
This 24 inch planer with spiral insert knife cutterhead, manufactured by Cantek, features a 3.86 inch cutterhead.
- PLC digital control for auto-thickness setting
- Sectional infeed roller and sectional chip breaker
- Variable speed drive
- Quick-set table roll adjustment
- Steel spiral cutterhead with carbide inserts - 6 rows 86 inserts 30 x 12 x 1.5 mm
- Cutters mounted on angle for 'shear' cut
- Exhaust hood with 6" outlet
- Magnetic controls
- Additional mechanical digital readout for fine thickness setting

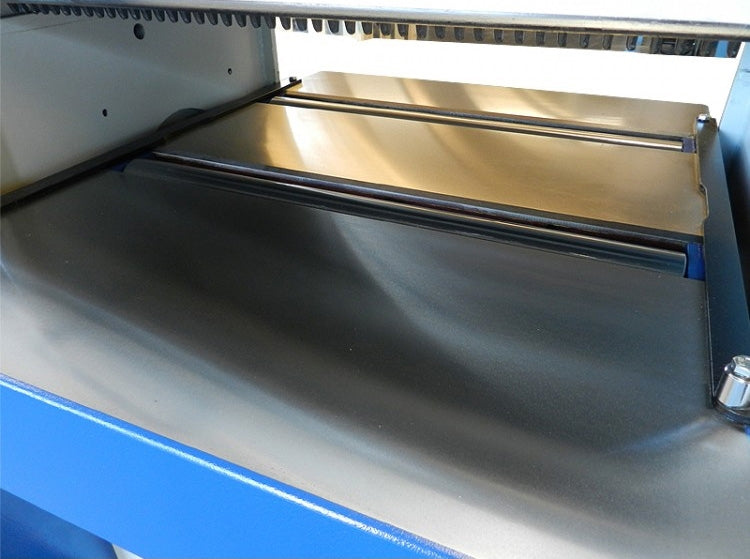

- 2 Idle rollers in table 2-7/8" dia.
- 4 table jack screws
- 3.86" diameter cutterhead
Technical Specifications:
| Max. planing width | 24-3/4" |
| Max. planing thickness | 11-13/16" |
| Max. depth of cut | 5/16" |
| Min. length | 8-3/4" |
| Table size | 27" x 34" |
| Feed speed | 20-39 FPM Variable |
| Main motor | 10 HP |
| Feed motor | 1 HP |
| Power rise & fall-table | 1/2 HP |
| Dust hood | (1) 6" |
