Description
Contact: Stan, the Woodworking Machinery Man
Phone: 678-642-9722
Email: stan@WoodworkingMachineryMan.com

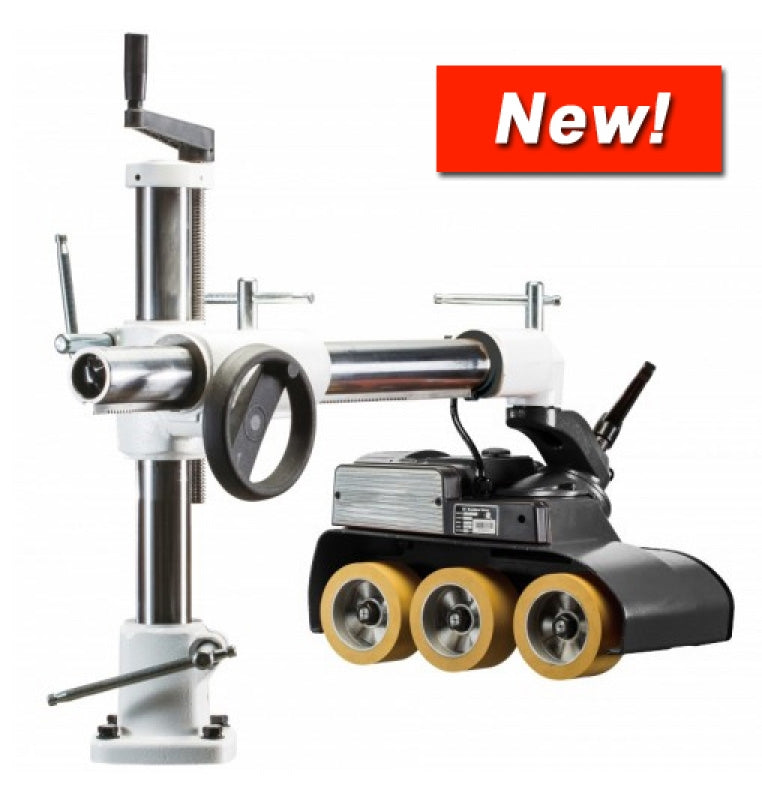

Cantek 3-Roll Variable Speed Power Feeder with Universal Stand - Model DC30
Available in 1 Ph
Available in 3 Ph
This 3-roll variable speed power feeder, manufactured by Cantek, saves over 50% power output than other feeders of the same size
Highlighted Features:

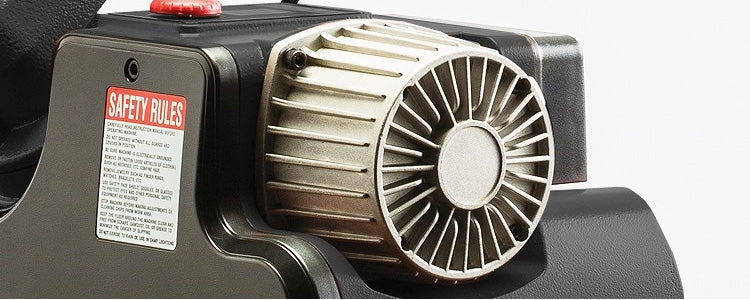

- ½ HP DC Brushless Servo Motor3 Rollers
- High efficiency = more power, more torque!
- Saves over 50% power output than other feeders of the same size
- Variable speed 2-22 M/min (7-72 FPM)
- Forward/reverse feed

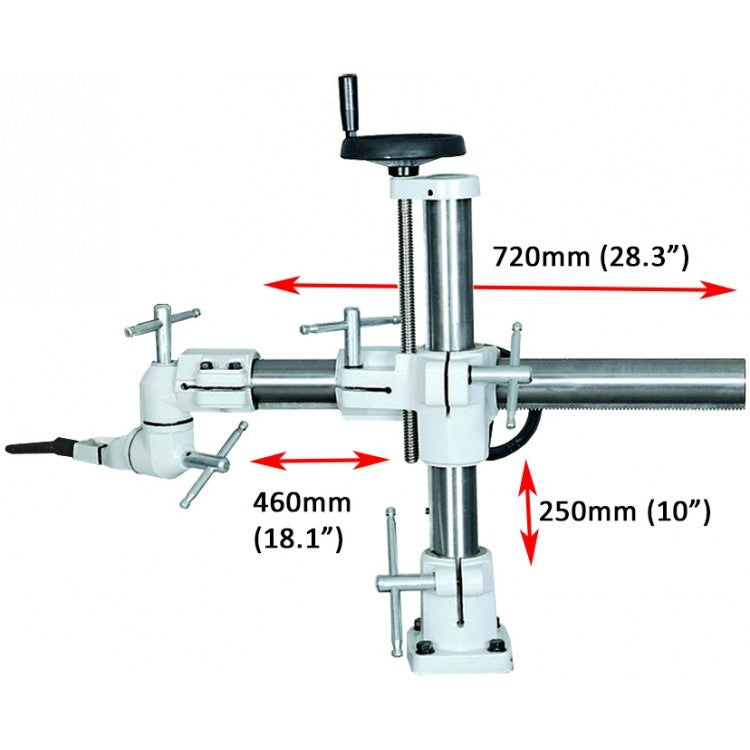

- Includes US13 Heavy Duty Universal Stand

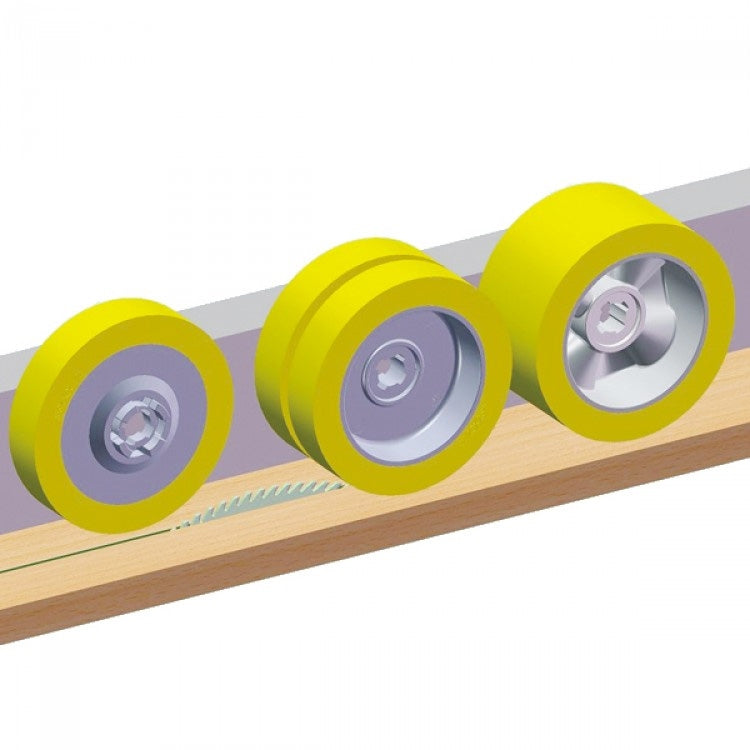

- Optional Dual Rollers for saw clearance
Technical Specifications:
| Voltage | 100-120V / 1 Phase |
| 200-240V / 1 or 3 Phase | |
| Roller Size | Φ120 x 60 mm (Standard) / Φ120 x 25 mm (Optional) |
| Roller | 3 |
| Feeding Speed | 2-22 M/min (7-72 FPM) |
| Max. Power Output | 400W |
| Horse Power | 1/2 HP |
| Packing Size | Body: 588 x 326 x 306 mm (23" × 12 ¾" × 12") |
| Stand: 770 x 320 x 290 mm (30-3/8" x 12-5/8" x 11 ½") | |
| Machine Weight | 23 kg (51 lbs) |
| 30 kg (66 lbs) | |
| Shipping Weight | 25 kg (55 lbs) |
| 32 kg (72 lbs) |
