5.5' (Also available in 8.5') - 1Ph - Combination Machine - MiniMax CU 300
The Mini Max CU300 Classic 8.5 includes . . . outrigger and fence, mobility kit, three 4.8hp motors, Tersa cutterhead, jointer fence, rip fence, 4 speed interchangeable and reversible shaper, 12" main blade with scoring, Dado capable.
Features:

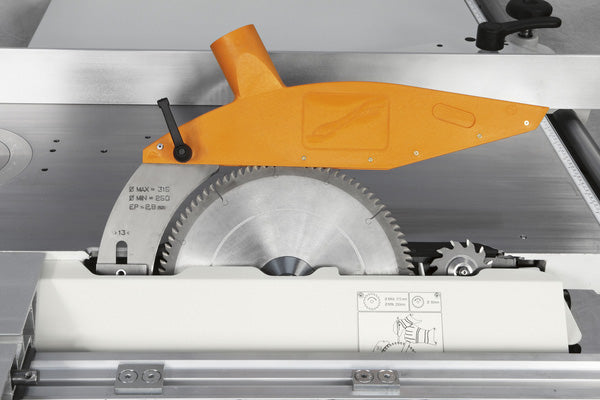

- Fully adjustable scoring blade
- 5-1/2' aluminum sliding table with precision bearing system
- Framing table with crosscut fence and swing arm for sheet good handling
- Four-speed shaper with interchangable spindle (1.25", standard)
- 12" jointer with three-kinfe Tersa cutterhead
- 12” x 9” thickness planer
- Mobility kit
Specifications:
- Three independent 4.8hp (1x230v) motors
- 12” Main blade capacity, right-tilting
- ¾” Dado capacity
- 5/8” American-standard saw arbor
- 36” rip capacity to the right of saw blade
- 1,350 lbs max.
Popular accessories:
- Cast-iron horizontal mortising attachment and chuck
- Short mitre fence
- Tenoning hood and plate
- Alternate diameter shaper spindles
